claude-code-tools

Status Line

The Claude Code status line shows live session context usage directly in your terminal status bar. It uses a powerline-style display with color-coded context indicators so you always know how much context remains.

A second line shows context-window usage plus — for Claude.ai Pro/Max subscribers — your session (5h) and weekly (7d) limit usage, so you can see how close you are to each limit at a glance.

What It Does

Section titled “What It Does”

The status line is a shell script (scripts/statusline.sh) that reads JSON input from Claude Code (available since v2.1.6+) and renders a compact, color-coded display of up to two lines.

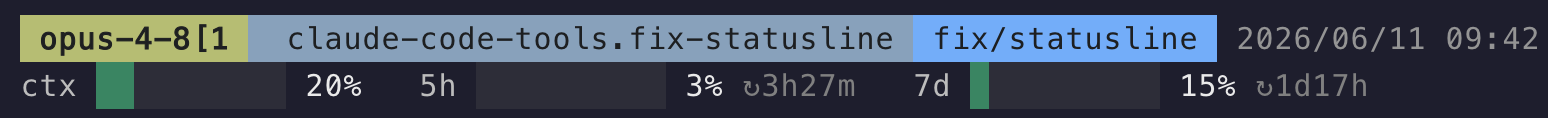

two-line status line

Line 1 — where you are (always shown):

  • Model name (e.g. opus-4, sonnet)
  • Current directory
  • Git branch and status (staged, modified, ahead/behind)
  • Date and time

Line 2 — how much you’ve used:

  • ctx — context-window usage, as a color-coded progress bar with percentage (always shown)
  • 5h — the rolling 5-hour session limit, with a bar, percentage, and a countdown to reset (e.g. ↻3h12m)
  • 7d — the 7-day (weekly) limit, same format

The ctx bar is always present. The 5h and 7d segments appear only for Claude.ai Pro/Max subscribers, after the first API response of a session; each is dropped when its data is unavailable.

Color States

Section titled “Color States”

The context bar and the two limit bars all change color based on the same usage thresholds:

Green (0—70%)

Section titled “Green (0—70%)”

Plenty of context remaining.

green

Yellow (71—85%)

Section titled “Yellow (71—85%)”

Context is filling up — consider wrapping up the current task or preparing to resume.

yellow

Orange (86—95%)

Section titled “Orange (86—95%)”

Context is running low — finish the current task and resume soon.

orange

Red (96—100%)

Section titled “Red (96—100%)”

Context is nearly exhausted. The bar blinks to draw attention. Resume immediately.

red

Setup

Section titled “Setup”

  1. Copy the script to your Claude config directory:

    Terminal window
    cp scripts/statusline.sh ~/.claude/
    chmod +x ~/.claude/statusline.sh

  2. Add to ~/.claude/settings.json:

    {
      "statusLine": {
        "type": "command",
        "command": "~/.claude/statusline.sh"
      }
    }

Requires jq and a Nerd Font for powerline symbols.

The session/weekly limit line appears automatically once Claude Code sends rate_limits data (Claude.ai Pro/Max, after the first message of a session). Its reset countdowns are computed when the line renders, which happens after each assistant message. To keep them ticking while the session is idle, add a refreshInterval (in seconds) to the config:

{
  "statusLine": {
    "type": "command",
    "command": "~/.claude/statusline.sh",
    "refreshInterval": 10
  }
}

How It Works

Section titled “How It Works”

The script receives JSON on stdin with fields including:

  • model — Current model name or object
  • workspace.current_dir — Working directory
  • context_window.used_percentage — Context usage (0—100)
  • rate_limits.five_hour — Session limit, with used_percentage and resets_at (Unix epoch)
  • rate_limits.seven_day — Weekly limit, same shape

It then:

  1. Extracts and cleans the model name.
  2. Reads git status from the working directory.
  3. Builds line 1 (model, directory, git, date/time) as a powerline bar with ANSI colors.
  4. Builds line 2: a ctx context-usage bar (always shown), then 5h and 7d limit bars with reset countdowns when rate_limits is present.
  5. Color-codes every bar by usage level and handles each limit window independently, dropping any segment whose data is unavailable.

The model segment background is green when git is clean and yellow when there are uncommitted changes, giving you a quick visual indicator of repository state.
